Minco TC2741系列嵌入热电偶温度探头

发布时间：2025-10-15 08:54:03     浏览：659

　　Minco TC2741系列嵌入热电偶温度探头是一种适用于多种工业应用的温度测量设备，在物理上可与Minco嵌入RTD互换，拥有四种件级铷合金外壳样式，温度范围为-184至260°C(-300至500°F)，引线长度有144英寸和48英寸两种规格。

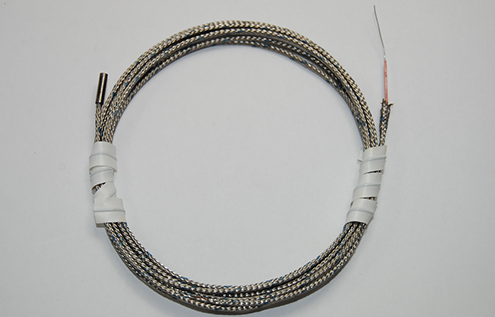

Minco TC2741系列嵌入热电偶温度探头

　　型号参数信息：

Product元素类型外壳样式引线长度（英寸）直径（mm）长度（mm）Lead Jacket
TC2741KU144SSingle JunctionD1442.037.62Stainless steel overbraid with PTFE insulated leads
TC2741EG144SSingle JunctionD1442.037.62Stainless steel overbraid with PTFE insulated leads
TC2741EG48SSingle JunctionD482.037.62Stainless steel overbraid with PTFE insulated leads
TC2741EU144SSingle JunctionD1442.037.62Stainless steel overbraid with PTFE insulated leads
TC2741EU48SSingle JunctionD482.037.62Stainless steel overbraid with PTFE insulated leads
TC2741JG144SSingle JunctionD1442.037.62Stainless steel overbraid with PTFE insulated leads
TC2741JG48SSingle JunctionD482.037.62Stainless steel overbraid with PTFE insulated leads
TC2741JU144SSingle JunctionD1442.037.62Stainless steel overbraid with PTFE insulated leads
TC2741JU48SSingle JunctionD482.037.62Stainless steel overbraid with PTFE insulated leads
TC2741KG144SSingle JunctionD1442.037.62Stainless steel overbraid with PTFE insulated leads
TC2741KG48SSingle JunctionD482.037.62Stainless steel overbraid with PTFE insulated leads
TC2741KU48SSingle JunctionD482.037.62Stainless steel overbraid with PTFE insulated leads
TC2741TG144SSingle JunctionD1442.037.62Stainless steel overbraid with PTFE insulated leads
TC2741TG48SSingle JunctionD482.037.62Stainless steel overbraid with PTFE insulated leads
TC2741TU144SSingle JunctionD1442.037.62Stainless steel overbraid with PTFE insulated leads
TC2741TU48SSingle JunctionD482.037.62Stainless steel overbraid with PTFE insulated leads

Minco是专注于为严苛应用提供温度传感与控制、热加热、柔性电路及集成解决方案。其产品广泛应用于医疗、航空航天、半导体、能源等多个行业。深圳市新葡萄AMG创展科技有限公司优势分销Minco产品，欢迎咨询了解。

推荐资讯

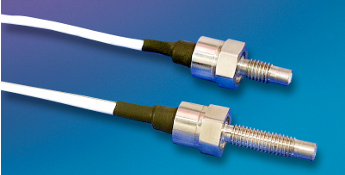

  • Kulite XST-190(M)压力传感器
    Kulite XST-190(M)压力传感器 2024-09-09 10:02:21

    Kulite XST-190(M) 压力传感器是一款高性能、防损坏设计的传感器，适用于高过压环境，具备高自然频率和先进的硅对硅集成传感器VIS?技术。其特点包括易于安装、多种螺纹选项、高精度和稳定性，适用于从0.35到17 BAR（5到250 PSI）的压力范围，并能承受高达3000 PSI的爆破压力。该传感器在-65°F到+350°F（-55°C到+175°C）的宽温度范围内工作，适用于各种非导电、非腐蚀性液体或气体介质，广泛应用于航空航天、汽车测试和液压系统等领域。

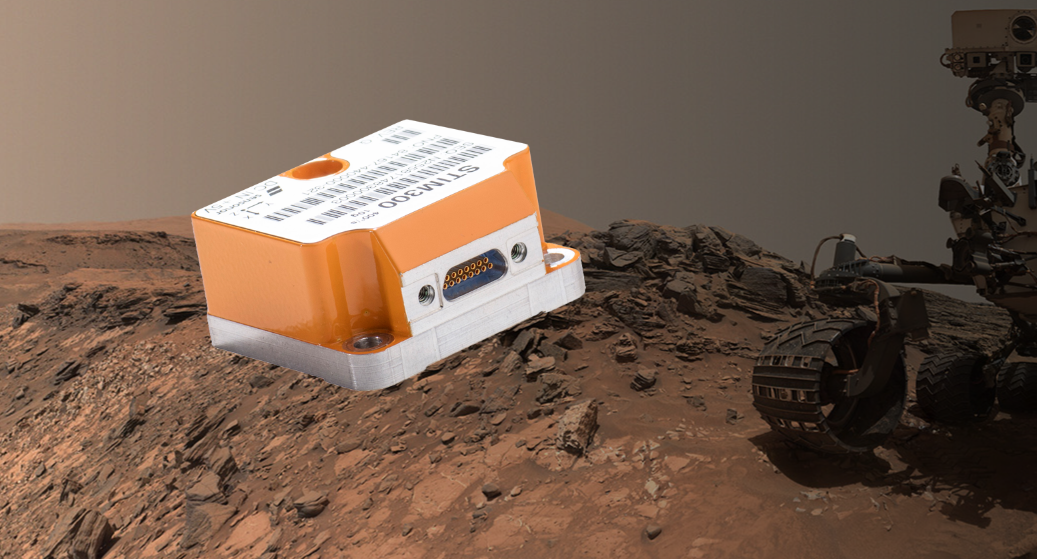

  • Safran惯性测量单元STIM300 IMU系列产品介绍
