Minco CT425可配置PID温度控制器

发布时间：2025-12-12 09:08:12     浏览：420

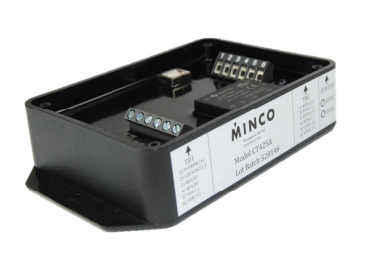

　Minco CT425可配置PID温度控制器

　Minco CT425是一款多功能、可配置的 PID 温度控制器，主要特点如下：

CT425 Temperature Controller
PerformanceMeasurement Range-70°C to 650?C (-94°C to 1202°F),F30.25°C full-range accuracy at 25°C
Input PowerModel CT425A:120VAC,50-60Hz
Model CT425B:10.5-60VDC
Model CT425C:240VAC,50-60Hz
Sensor Inputs (RTD)100% or 1000% Platinum,0.00385%/%/°CTCR,
2-wire connection,
Open and shorted sensor detection
Connections5mm spacing terminal block
EnvironmentOutput RatingsOutputMax VoltageCurrent (25C)Current (55C)
120VAC Solid State (CT425A)120VAC6A5A
DC Solid State (CT425B)60VDC15A11A
240VAC Solid State (CT425C)240VAC3A2.5A
Mechanical Relay250VAC/30VDC10A resistive
Logic Voltage4.4V,+/- 0.1V output26mA,+/- 3mA
Temperature Range-20°C to 55°C,90% humidity,non-condensing
MechanicalDimensions5.46” x 3.34” x 1.22”
Weight350 grams (12.3 ounces)
EnclosureUL 94V-0 ABS plastic with epoxy potting

　　Ordering Information

　　To configure your temperature controller,select from the

　　options listed below to determine the complete part number.

CT425Power Supply
CT425A120VAC power,120 VAC solid state relay
CT425B10.5–60VDC power,DC solid state relay
CT425C240VAC power,240 VAC solid state relay
Additional Option:-BTBluetooth Communication
Blank for none
CT425A,CT425A-BT = Sample part number

Minco是专注于为严苛应用提供温度传感与控制、热加热、柔性电路及集成解决方案。其产品广泛应用于医疗、航空航天、半导体、能源等多个行业。深圳市新葡萄AMG创展科技有限公司优势分销Minco产品，欢迎咨询了解。
