PDI在广泛的标准频率范围内提供各种表面贴装滤波器(10,000 MHz至90.000 MHz)，并且具有任何商业或军用级规格的最高质量。PDI的晶体滤波器有多种表面贴装封装，可满足客户所需的规格。

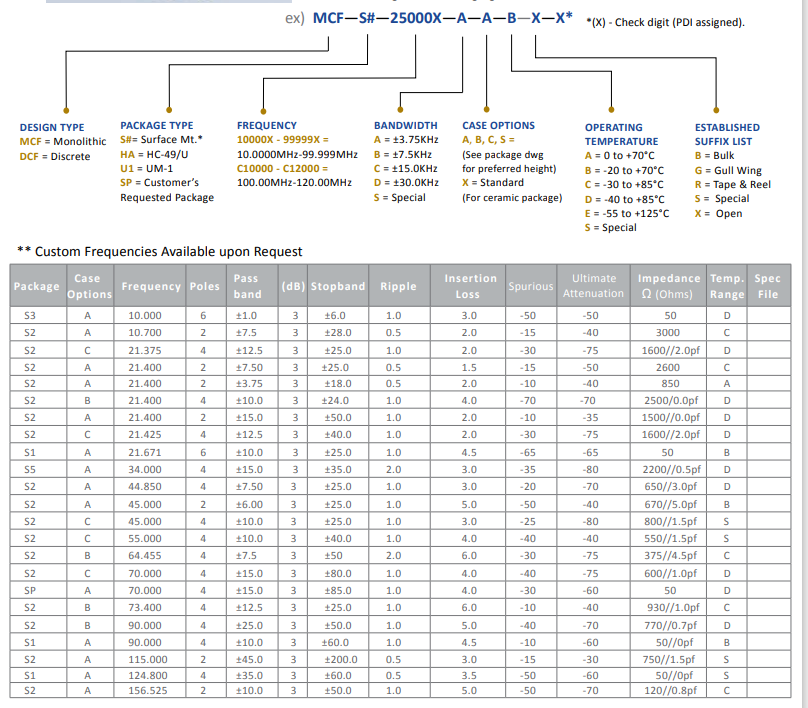

选型：
| 封装 | 频率范围 | Thru-Hole/SMD | Discrete/Monolithic | 工作温度 | Poles | Lead Free |
|---|---|---|---|---|---|---|
| S1 | 10.7MHz to 200MHz | SMD | Monolithic | -55 to +125°C | 4 | Yes |
| S2 | 10.7MHz to 200MHz | SMD | Monolithic | -55 to +125°C | 4 | Yes |
| S3 | 10.7MHz to 200MHz | SMD | Monolithic | -55 to +125°C | 6 | Yes |
| S4 | 10.7MHz to 200MHz | SMD | Monolithic | -55 to +125°C | 6 | Yes |
| S5 | 10.7MHz to 200MHz | SMD | Monolithic | -55 to +125°C | 8 | |
| SC | 10.7MHz to 200MHz | PTH | Both | -55 to +125°C | 8 | Yes |
| SP | 10.7MHz to 200MHz | SMD | Monolithic | -55 to +125°C | 8 | Yes |
