D1004UK,D1028UK,D1001UK,D1053UK,D1036UK,D1093UK 28V射频功率晶体管

发布于：2025-11-10 17:02:04

品牌名称：Semelab

订货周期：6-8周
立即订购

重要参数：

电压：28V

功率：10W–350W

频率：1MHz–1GHz

增益：10–16dB

封装：法兰(DA/DK)、贴片(SO8)、定制

产品详情

Device	Min.Output Power (W)	Min.Efficiency (%)	Min.Gain (dB)	Test Frequency (MHz)	Operating Voltage(V)	Package Type	Single-Ended/ Push-Pull	Application Frequency	Active FET Configutation	Breakdown Voltage(V)
D1001UK	20	50	16	175	28	DA	SINGLE-ENDED	1-175MHz	1	70
D1002UK	40	50	16	175	28	DA	SINGLE-ENDED	1-175MHz	2	70
D1003UK	60	50	16	175	28	DM	SINGLE-ENDED	1-175MHz	3	70
D1004UK	80	50	16	175	28	DT	SINGLE-ENDED	1-175MHz	4	70
D1005UK	80	50	16	175	28	DM	SINGLE-ENDED	1-175MHz	4	70
D1006UK	120	50	14	175	28	DV	SINGLE-ENDED	1-200MHz	6	70
D1007UK	40	50	13	400	28	DK	PUSH-PULL	1-1000MHz	1+1	70
D1008UK	80	50	13	400	28	DK	PUSH-PULL	1-500MHz	2+2	70
D1009UK	150	50	10	400	28	DR	PUSH-PULL	1-500MHz	4+4	70
D1010UK	125	60	10	400	28	DR	PUSH-PULL	1-500MHz	4+4	70
D1011UK	10	50	13	500	28	S08	SINGLE-ENDED	1-1000MHz	1	70
D1012UK	100	50	10	500	28	DH	PUSH-PULL	1-500MHz	3+3	70
D1013UK	20	50	13	500	28	DP	SINGLE-ENDED	1-1000MHz	1	70
D1014UK	40	50	12	500	28	DP	SINGLE-ENDED	1-500MHz	2	70
D1015UK	125	50	13	400	28	DH	PUSH-PULL	1-400MHz	4+4	70
D1016UK	40	50	13	400	28	DQ	PUSH-PULL	1-1000MHz	1+1	70
D1017UK	150	50	13	175	28	DM	SINGLE-ENDED	1-200MHz	6	70
D1018UK	100	50	10	500	28	DD	PUSH-PULL	1-500MHz	3+3	70
D1019UK	20	50	16	175	28	DW	SINGLE-ENDED	1-175MHz	1	70
D1020UK	150	50	10	400	28	DR	PUSH-PULL	1-500MHz	5+5	70
D1021UK	125	50	13	400	28	DK	PUSH-PULL	1-400MHz	4+4	70
D1022UK	100	50	10	500	28	DK	PUSH-PULL	1-500MHz	3+3	70
D1023UK	60	50	16	175	28	DT	SINGLE-ENDED	1-175MHz	3	70
D1024UK	40	50	13	400	28	DD	PUSH-PULL	1-500MHz	1+1	70
D1025UK	100	50	16	175	28	DT	SINGLE-ENDED	1-175MHz	5	70
D1027UK	150	50	13	175	28	DR	PUSH-PULL	1-200MHz	6+6	70
D1028UK	300	60	13	175	28	DR	PUSH-PULL	1-200MHz	6+6	70
D1029UK	350	60	13	175	28	DR	PUSH-PULL	1-200MHz	7+7	70
D1030UK	400	50	13	175	28	DR	PUSH-PULL	1-200MHz	8+8	70
D1031UK	10	50	13	500	28	F-0127	SINGLE-ENDED	1-1000MHz	1	70
D1034UK	80	50	13	400	28	DD	PUSH-PULL	1-500MHz	2+2	70
D1036UK	100	50	14	175	28	DM	SINGLE-ENDED	1-175MHz	5	70
D1053UK	50	45	7.5	1000	28	DB	PUSH-PULL	1-1000MHz	1+1+1+1	70
D1093UK	10	50	13	500	28	SOT171	SINGLE-ENDED	1-1000MHz	4	65
D1094UK	20	50	11	500	28	SOT171	SINGLE-ENDED	1-1000MHz	6	65

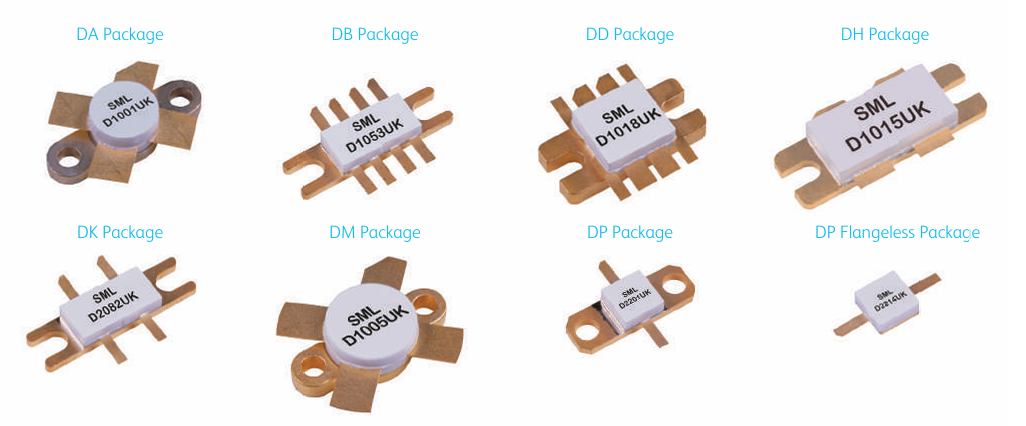

Semelab 28V射频功率晶体管
