- 产品详情
| 规格 | ||
| D633 | D634 | |
| 控制功能 | 流 | |
| 安装模式 | ISO 4401 尺寸03（NG6） | ISO 4401 尺寸 05（NG10） |
| 水力数据 | ||
| 额定流量为每块土地?p 35巴（500 psi） | 最高转速40升/分钟（10.6加仑/分钟） | 最高转速100升/分钟（26.4加仑/分钟） |
| 最大流量 | 75升/分钟（19.8加仑/分钟） | 180升/分钟（47加仑/分钟） |
| 最大作压力 | 端口P、A、B——350巴（5,000 psi） | |
| 无Y接口T型 - 50巴（725 psi） | ||
| 带Y的T端口 - 350巴（3000 psi） | ||
| 0到100%步进的步进响应时间 | 12毫秒 | 20毫秒 |
| 电气数据 | ||
| 电源电压 | 24 VDC（18至32伏DC) | |
| 额定信号选项 | +/-10 V，+/-10 mA，以及4至20 mA | |
| 电气连接器 | 6+PE | |

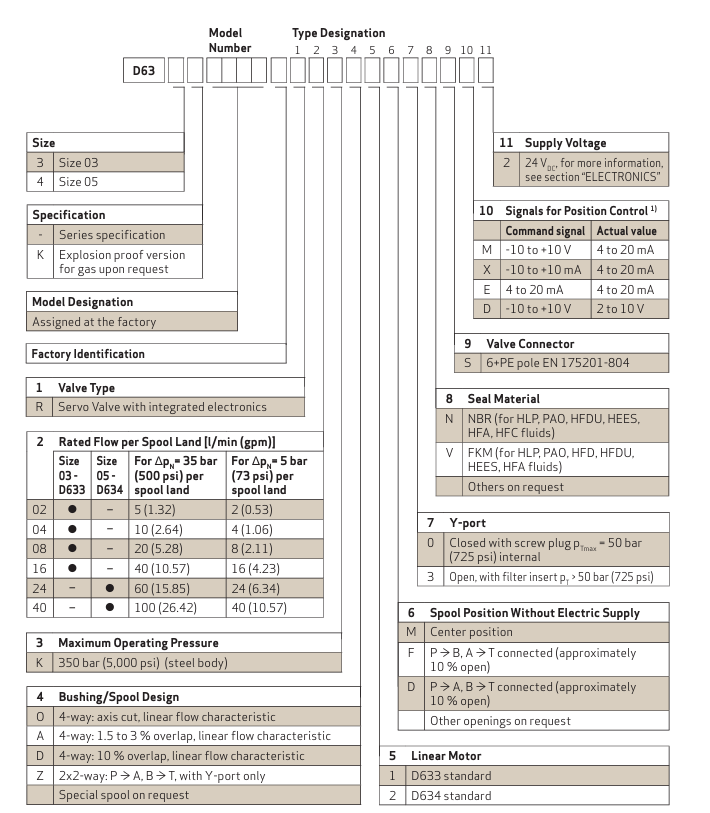

订货型号指南：
| Model Number | Type Code | Notes | Flow (gpm @ 1000 psi total drop) | Flow (gpm @ 150 psi total drop) | Maximum Supply Pressure | Null Cut (on main stage) | Fail-Safe | Seal Type | Electrical Connector | Input Command | Power Supply |
| D633-303B | R02KO1MONSM2 | 1 | 0.5 | 5000 | Servo 0 to 1.5% overlap | Spool in Mid-Position | Buna | 7-Pin | ±10 VDC | +24 VDC | |
| D633-317B | R04KO1MONSM2 | 2 | 1 | 5000 | Servo 0 to 1.5% overlap | Spool in Mid-Position | Buna | 7-Pin | ±10 VDC | +24 VDC | |
| D633-308B | R08KO1MONSM2 | 5 | 2 | 5000 | Servo 0 to 1.5% overlap | Spool in Mid-Position | Buna | 7-Pin | ±10 VDC | +24 VDC | |
| D633Z570B | R16KO1MONSM2 | Vibration resistant internal connector | 10 | 4 | 5000 | Servo 0 to 1.5% overlap | Spool in Mid-Position | Buna | 7-Pin | ±10 VDC | +24 VDC |
| D634Z395C | R24KO2MONSM2 | Vibration-resistant internal connector and localized plotting | 16 | 6 | 5000 | Servo 0 to 1.5% overlap | Spool in Mid-Position | Buna | 7-Pin | ±10 VDC | +24 VDC |
| D634Z549A | R40KO2MONSM2 | Vibration-resistant internal connector and localized plotting | 26 | 10 | 5000 | Servo 0 to 1.5% overlap | Spool in Mid-Position | Buna | 7-Pin | ±10 VDC | +24 VDC |
| D634-1019 | P24KA6MOVSMS2 | 16 | 6 | 5000 | Proportional 0 to 3% overlap | Spool in Mid-Position | Fluorocarbon | 7-Pin | ±10 VDC | +24 VDC | |
| D634-1003 | P40KA6MOVSMS2 | 26 | 10 | 5000 | Proportional 0 to 3% overlap | Spool in Mid-Position | Fluorocarbon | 7-Pin | ±10 VDC | +24 VDC | |
| D634-1001 | P60KA6MOVSMS2 | 42 | 16 | 5000 | Proportional 0 to 3% overlap | Spool in Mid-Position | Fluorocarbon | 7-Pin | ±10 VDC | +24 VDC | |
| D634Z1044 | P60KA6MONSM2 | Vibration-resistant internal connector | 42 | 16 | 5000 | Proportional-0 to 3% overlap | Spool in Mid-Position | Buna | 7-Pin | ±10 VDC | +24 VDC |
