Sensata Technologies 的 LP35 系列是一款专为工业自动化、电机控制、重载机械及恶劣环境应用设计的低外形编码器。产品采用紧凑型90mm机身设计，在有限安装空间内依然能够提供高精度位置反馈和速度检测能力。
LP35支持增量式与绝对值两种输出方式，最高可提供10000 PPR增量分辨率或16位绝对值分辨率，满足高精度运动控制需求。同时具备IP66防护等级、优异的抗冲击和抗振动性能，可长期稳定运行于严苛工业环境。
产品特点
超薄低外形设计，节省安装空间
支持增量式与SSI绝对值输出
增量分辨率最高10000 PPR
绝对值分辨率最高16 Bit(65536位置)
IP66高防护等级
工作温度范围 -40°C至+100°C
抗冲击能力高达300G
抗振动能力高达20G
支持TTL、HTL及SSI接口
提供M12连接器、电缆或接线盒输出方式
最高转速6000 RPM
支持空心轴、盲孔轴、实心轴及集成联轴器结构
主要参数
| 参数 | 规格 |
| 产品型号 | LP35 |
| 编码器类型 | 增量式 / 绝对值 |
| 增量分辨率 | 最高10000 PPR |
| 绝对值分辨率 | 最高16 Bit |
| 防护等级 | IP66 |
| 工作温度 | -40°C ~ +100°C |
| 最高转速 | 6000 RPM |
| 电源电压 | 5~30 VDC |
| 输出接口 | TTL、HTL、SSI |
| 外壳尺寸 | ?90mm × 26mm |
| 抗冲击 | 300G |
| 抗振动 | 20G |

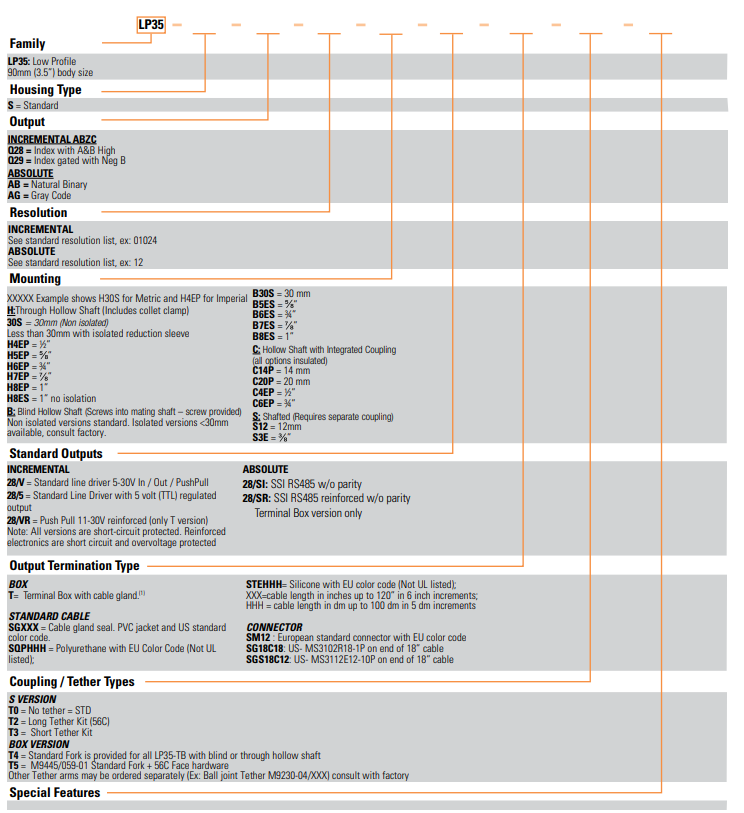

型号
| Product Number | Model No. | Mechanical Mounting Configuration | Version | Resolution | Tether Part No |
| 01301-005 | LP35-S-Q29-01024-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | 1024 | M9445/059-02 |
| 01301-006 | LP35-S-Q29-02048-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | 2048 | M9445/059-02 |
| 01301-007 | LP35-S-Q29-00500-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | 500 | M9445/059-02 |
| 01301-008 | LP35-S-Q29-02000-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | 2000 | M9445/059-02 |
| 01301-009 | LP35-S-Q29-02500-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | 2500 | M9445/059-02 |
| 01301-010 | LP35-S-Q29-01000-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | 1000 | M9445/059-02 |
| 01301-011 | LP35-S-Q29-00100-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | 100 | M9445/059-02 |
| 01301-012 | LP35-S-Q29-05000-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | 5000 | M9445/059-02 |
| 01300-008 | LP35-S-Q29-01024-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | 1024 | M9445/053-02 |
| 01300-010 | LP35-S-Q29-00500-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | 500 | M9445/053-02 |
| 01300-011 | LP35-S-Q29-02000-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | 2000 | M9445/053-02 |
| 01300-012 | LP35-S-Q29-02500-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | 2500 | M9445/053-02 |
| 01300-013 | LP35-S-Q29-01000-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | 1000 | M9445/053-02 |
| 01300-014 | LP35-S-Q29-00100-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | 100 | M9445/053-02 |
| 01300-015 | LP35-S-Q29-05000-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | 5000 | M9445/053-02 |
| 01300-016 | LP35-S-Q29-02048-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | 2048 | M9445/053-02 |
| 01313-001 | LP35-S-P-XP-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | Programmable | M9445/059-02 |
| 01313-002 | LP35-S-P-XP-S3E-28/V-T-T0 | 3/8" shafted | Compact, Term Box. | Programmable | None |
| 01312-001 | LP35-S-P-XP-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | Programmable | M9445/053-02 |
| 01312-002 | LP35-S-P-XP-S3E-28/V-SM12-T0 | 3/8" shafted | Compact, SM12 conn. | Programmable | None |
